RADXA Camera 8M 219

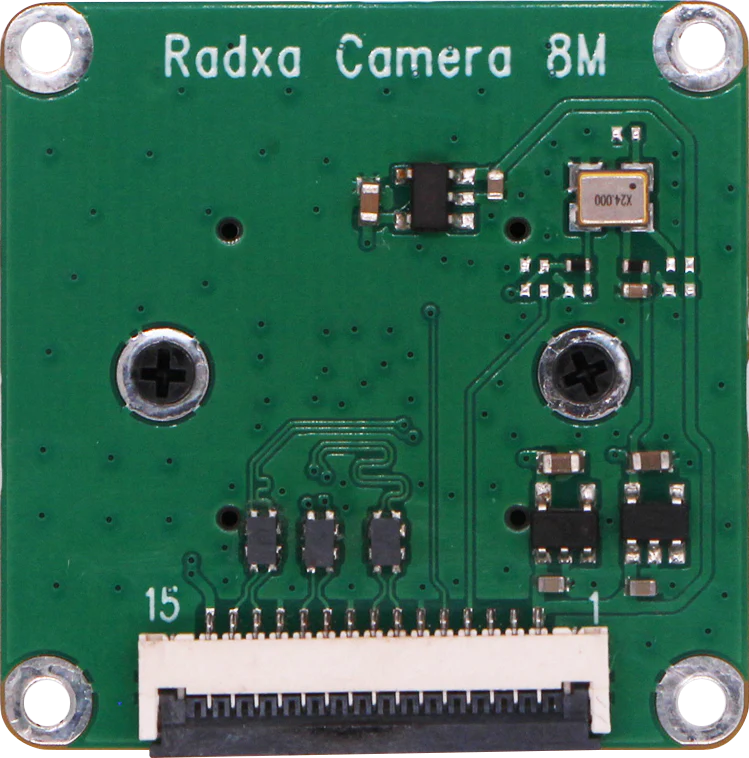

Radxa Camera 8M 219 -  HD camera for various Radxa Boards*

The camera has an SONY IMX219 sensor and connects via the CSI interface. The camera provides a resolution of 8M pixels.

Applications: Surveillance cameras, FA cameras, Industrial cameras.

Detailed Specs:

Sensor：

– SONY IMX219
– Diagonal 6.43 mm (Type 1/2.8)
– 8M pixel
– Unit cell size： 1.45 µm (H) × 1.45 µm (V)

Output:

– CSI‑2 serial data output ( 2 Lane / 4 Lane )
– RAW10 / RAW12 output

Lens Specification:

– Interface Type： M12XP0.5
– Focal Length(EFL): 2.95±5%mm
– Back Focal Length(BFL): 4.64mm

– Flange Back Length(FBL): 4.00mm

– Single lens operating temperature： ‑40°C ~ +85°C

– FOV

Field of view (Diagonal/Horizontal/Vertical) CRA
D=88.2±5° H=75±3° V=59±2° 15°

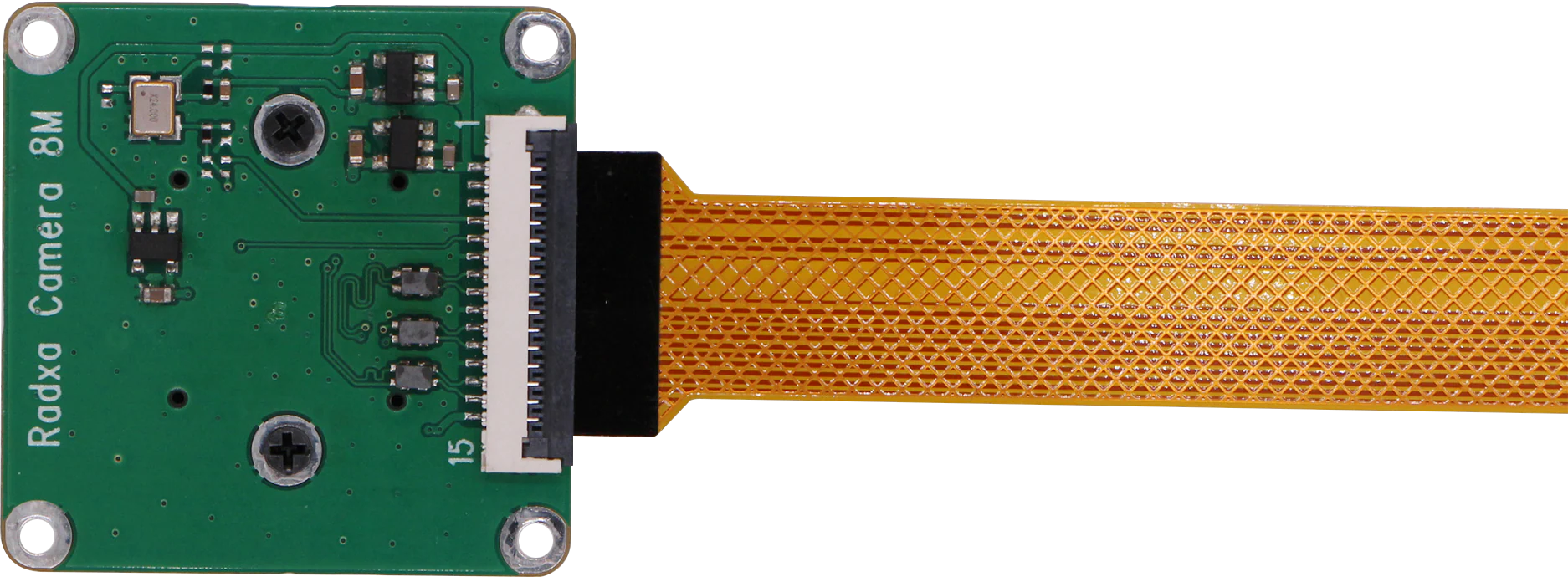

FPC cable length: 150 mm

*) works with:

• ZERO 3W / 3E

*) for use with other boards purchase of different FPC cable is required

• ROCK 4SE/ 4A/ 4B/ 4A+/ 4B+/ 4C+
• ROCK 3A/ 3B/ 3C
• ROCK 5A/ 5B
